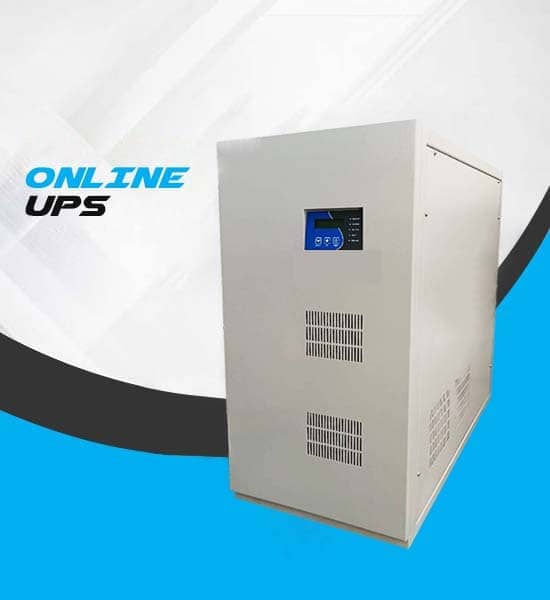

Online UPS
Its AVR function allows Input Voltage range from 70% to 125%. It is based on micro controls and there it has fewer components and highest reliability. It has ability to take care of Overload, Over
Voltage, and Battery under Voltage, Short circuit and Shut down. The LCD / Digital display of UPS always keep the customer fully informed about the UPS condition.
ProductDetails:
| Technical Specifications of On/Off line UPS | |
|---|---|
| Range |
1 KVA to 10 KVA, Single Phase 5 KVA to 50 KVA, Three Phase |
| Design |
Modular for easy servicing Tropicalized to suit any working condition |
| Input |
Normal Voltage, 160 Volt (AC) to 280 Volt (AC) Single Phase, 270 Volt (AC) to 470 Volt (AC) Three Phase |
| Nominal Frequency | 45 Hz to 55 Hz |
|
DC Voltage (50 KVA & Above) (10 KVA to 45 KVA) (1KVA to 7.5 KVA) |
432 Volt 360 Volt / 384 Volt 48Volt /60Volt /120Volt/180Volt |
| DC Voltage (Optional) | As per customer's requirement |
| Output (Technology) | IGBT |
| Output Voltage |
230Volts AC (Single Phase) 400/415 Volts AC (Three Phase) |
| Voltage Regulation |
+/-1% for DC I/P variation & O/P load variation 50Hz +/- 0.05Hz 50Hz +/- 0.05Hz Any optional frequency |
| Wave Form | Pure Sine Wave |
| Power Factor | 0.8 lagging to unity |
| Harmonic Distortion | Less than 3% |
| Inverter Efficiency |
>93% for 360V DC and above >90% for 180V DC >85% for 48V DC/ 60V DC/ 72V DC/ 120V DC |
| Crest Factor | 3:1 |
| Overload |
125% for 5 Minutes 150% for 60 Sec |
| Transient Recovery | Within 20 m sec ( 1 cycle) |
| Phase Displacement | 1200 +/- 1o (For 3 Phase output) |
| Audible Noise | Less than 45 Db ant 1 Meter |
| Metering |
Output Voltage, Analog/Digital (Optional) (As per customer choice) LED & Microprocessor based Digital LCD metering for multiple parameters shall be provided as optional in Higher Capacities. |
| General Operation Temperature | 0oC to 50oC |
| Humidity | Max 95%, Non-condensing |
| Degree of Protection | IP 42 |
|
Protection (DC Under Voltage) (DC Over Voltage) (Output Under Voltage) (Output Over Voltage) (Output Over Load) (Output Short-circuit) |
Inverter Trips Inverter & Charger Trips Inverter Trips Inverter Trips Inverter Trips Inverter Trips |
| Indication & Alarms |
Mains On by Indicator Inverter On by Indicator |
|
(Mains Fall) (DC Low) (DC Over Voltage) (Output Under Voltage) (Output Over Voltage) (Output Overload) |
Indicator & Alarm Indicator & Alarm Indicator & Alarm Indicator & Alarm Indicator & Alarm Indicator & Alarm |
|
By Pass Facility (Static Bypass Switch) |
Manual Bypass Switch (Provided as Standard feature) Bi-directional (Optional) |
|
Isolation of Power (Input) (Output) (Battery) |
MCB Provided Switch / MCB (Optional) HRC fuse / MCB (Optional) |
|
Battery Bank (Capacity) |
Sufficient to sustain full for 10 min to 10 Hrs. or Any backup time required |
| Type of Battery |
SMF (Sealed Maintenance Free) or Tubular Stationary Lead-Acid Battery |
| Accessories |
Set of inter row & inter bank connectors with battery Battery mounting Rack (Optional) |
| Application |
Servers, Computer work stations, Network equipments. Telecom & Cellular equipments. Automatic Teller machines. Medical equipments, Fire protection equipments. Special Purpose machines. |
| UPS ON LINE IGBT HIGH FREQUENCYUPS | |
