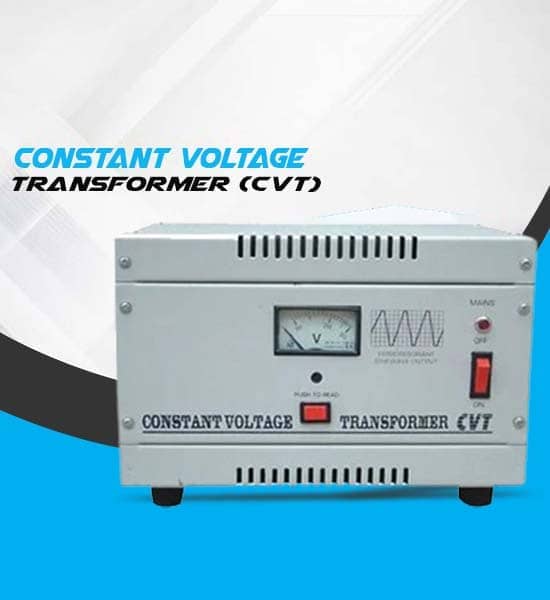

Constant Voltage Transformer (CVT)
| CAPACITY | 150VA TO 10KVA |
| PHASE | SINGLE PHASE |
| INPUT VOLTAGE RANG | 180-260V |
| INPUT/OUTPUT FREQUENCY | 50HZ. (+/- 1 HX OR BETTER) |
| OUTPUT VOLTAGE | 230 V AC (+/- 1.5% OR BETTER) |
| OUTPUT VOLTAGE | SINUSOIDAL |
| EFFICIENCY | 95% OR MORE |
| POWER FACTOR | UNITY |
| AMBIENT TEMPERATURE | UPTO 50 DEG. CEL |
| WHEEL MOUNTED (FOR MOVEMENT) | WHEEL MOUNTED (IF REQUIREMENT) |
| PROTECTION | SHORT CIRCUIT AND OVERLOAD OPTIONAL |
| TERMINATION | INPUT & OUTPUT TERMINAL BLOCKS |
| RELATIVE HUMIDITY | 95% NON CONDENSATION |
